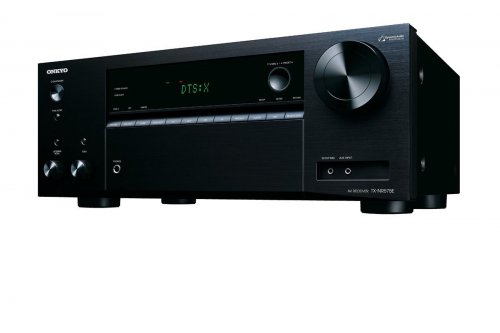

AV receiver ONKYO TX-NR575E, black u Links trgovinama

Osnovne značajke

broj kanala: 7.2
snaga po kanalu: 135 W/Ch
Wi-Fi: da
Bluetooth: da
THX certifikat: ne
Dolby Atmos: da
DTS: DTS:X™, DTS-HD Master Audio™

OPIS

7.2-kanalni mrežni audio-video receiver

Pojačalo koje vam pristaje poput rukavice, bili vi pobornik sporta,
slušali glazbu s interneta, ili volite filmove, TX-NR575E ima
tehnologiju i visokooktansku snagu koja će zadiviti. HDMI ulazi
propuštaju 4k/60p video s 4K HDRom i BT.2020 na vaš zaslon s
unutarnjim dekodiranjem za Dolby Atmos® i DTS:X™ zvuk, dok Hi-Res
Audio izvođenje u DSD i 192/24 formatu stoji na raspolaganju za
zvučne puriste. Možete dijeliti mrežne i analogne izvore na
kompatibilne bežične zvučnike putem FireConnect™* tehnologije od
Blackfirea. Mrežni zvuk kontrolirajte putem Androida i iOS uređaja
uključujući i AirPlay, Spotify®, i glazbene servise putem
dvopojasnog Wi-Fi pristupa, i prijamnik dolazi s ugrađenom uslugom
Chromecast i DTS Play-Fi*. Građen na dinamičnom audio pojačanju
TX-NR575E će transformirati vaš stil zabave.

*Buduće nadogradnje firmvera su potrebne

Glavne značajke

Dolby Atmos®, DTS:X™ i FireConnect™
Music Made Easy s ugrađenom uslugom Chromecast*
Streaming svih sadržaja uz DTS Play-Fi®*
Wi-Fi®, AirPlay, Spotify®, i Bluetooth®
Podržava HDR10, Dolby Vision™, BT.2020, 4K/60 Hz i HDCP 2.2

___________________________

Tehnički detalji

ISTAKNUTE KARAKTERISTIKE

Supports 5.2.2-Channel Dolby Atmos and DTS:X Playback
135 W per Channel
HDMI 4 In / 1 Out (4K/60 Hz / HDR10 / Dolby Vision™ / HDCP 2.2)
Dynamic Audio Amplification with 4 ? Speaker-driving Capability
384 kHz/32-bit DAC and VLSC™ Filtering for Superior Clarity
Ready for Chromecast built-in* and DTS Play-Fi*
5 GHz/2.4 GHz Wi-Fi®, AirPlay, Spotify, TIDAL, Deezer, Pandora®,
TuneIn*5
FireConnect™*1 Wireless Multi-room Audio

* Requires a future firmware update.

NAPREDNE MOGUĆNOSTI

HDMI Terminals Supporting HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and
HDCP 2.2
Supports 5.2.2-Channel Dolby Atmos Playback and Dolby Surround
Upmixing
DTS:X Object-based Audio Reproduction and DTS Neural:X™ 3D Upmixing
AccuEQ Room Acoustic Calibration with AccuReflex Phase Alignment for
Dolby Atmos-enabled Speakers
Ready for Onkyo Controller App Integrated Multi-room Intuitive
Operation*2
Stable Dual-band 5 GHz/2.4 GHz Wi-Fi® Connectivity
Features Chromecast built-in* Wireless Audio Streaming Technology
DTS Play-Fi* Shares Music from Apps to Receiver and Wireless Speakers
AirPlay Audio Streaming from iTunes and iPad, iPhone, and iPod touch
Supports Hi-Res Audio Including DSD 5.6 MHz/2.8 MHz*3, 192 kHz/24-bit
FLAC, WAV, AIFF, and ALAC, and Dolby® TrueHD*4
Supports Spotify, TIDAL, TuneIn, Pandora, and Deezer Services*5
FireConnect™ Multi-room Distribution of Network and Analog Audio
Sources*6 to Compatible Wireless Speakers
Powered Zone 2 Speaker Outputs and Zone 2 Line Output with Dedicated
DAC Supporting Network and Analog Audio Playback
Bluetooth® Wireless Technology for Mobiles, Laptops, and PCs (Version
4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
Advanced Music Optimizer Improves Compressed Digital Audio Quality,
Including Bluetooth Audio
480i De-interlacing (480i to 480p) via HDMI

*1 Enabled with a firmware update. FireConnect™ is a technology
based on Blackfire provided by Blackfire Research Corp., USA. Sampling
rates of 44.1 kHz and 48 kHz are supported.
*2 For iOS and Android devices. Please check App Store or Google
Play™ for device and OS requirements.
*3 DSD playback not supported over wireless LAN.
*4 Dolby TrueHD playback via USB input only.
*5 Availability of services may vary with region. Please confirm
availability before purchase. Subscription may also be required.
Pandora is available in Australia and New Zealand only.
*6 Sharing audio from external analog inputs depends on the model and
is enabled with a future firmware update.

KARAKTERISTIKE POJAČALA

135 W/Ch (6 ?, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Dynamic Audio Amplification System Delivers Thrilling Stereo and
Multichannel Performance
Discrete Output Stage Circuitry for Low Distortion
High Current Power to Drive Larger Speakers with 4 ? Resistance
H.C.P.S. (High Current Power Supply) Transformer
Non-Phase-Shift Amplification Circuitry for Clarity and Detail
VLSC (Vector Linear Shaping Circuitry) High-frequency Noise Removal
(Front L/R Channels)
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF
Audio

MOGUĆNOSTI OBRADE

Dolby Atmos and DTS:X Reproduction (5.2.2 Channels)
HDMI Support for 4K/60 Hz, HDR10, Dolby Vision, 3D, Audio Return
Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby
TrueHD, DTS:X, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD
(SACD), Multichannel PCM, and CEC
AKM (AK4438) 384 kHz/32-bit Multichannel DAC
32-bit Digital Signal Processing
DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
Enjoy Pristine Reproduction of Audio-only Sources in Pure Audio Mode
Direct Mode for Audio Reproduction Close to Original Source Quality
Tone Controls (Bass/Treble) for Front L/R Channels

MOGUĆNOSTI SPAJANJA

4 HDMI Inputs and 1 Output
Powered USB Port (5 V, 1 A) for Audio Playback
2 Composite Video Inputs
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
4 Analog Audio Inputs, 1 Stereo Analog Input (3.5 mm, Front)
Phono Input (MM) and Equalizer for Turntable
2 Subwoofer Pre-Outs
Headphone Jack (6.35 mm, Front)
Speaker Posts with Screw Knobs
Speaker Setup Mic Input and Microphone (Front)

OSTALE KARAKTERISTIKE

Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
Graphical User Interface with Overlaid On-Screen Display (OSD) via
HDMI
Quick Setup Guide via GUI and Easy Connection Diagram on Rear Panel
Large Input Selector Buttons
Economical HDMI Pass-through and Network Standby Functions
IP Control via LAN for Home Automation Systems
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
Full-sized Simple Remote Control
