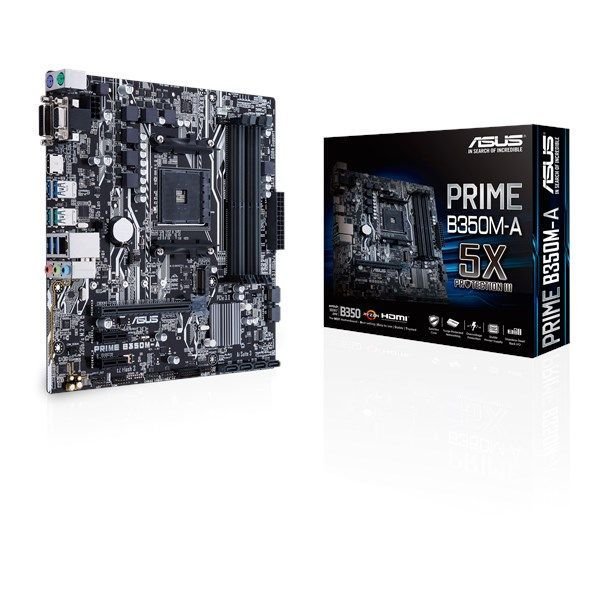

Matična ploča ASUS Prime B350M-A, AMD B350, DDR4, zvuk, G-LAN, SATA, M.2, PCI-E 3.0, D-Sub, DVI, HDMI, USB 3.0, uATX, s. AM4 u Links trgovinama

CPU
AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™
Processors
Supports CPU up to 8 cores
Chipset
AMD B350
Memory
AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz
Non-ECC, Un-buffered Memory *1
AMD 7th Generation A-series/Athlon™ Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of
individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated AMD Radeon™ R Series Graphics in the 7th Generation
A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x
1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB
Expansion Slots
AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B350 chipset
2 x PCIe 2.0 x1
Storage
AMD B350 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
2 x SATA 6Gb/s port(s), gray,
AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage
devices support (SATA & PCIE 3.0 x 4 mode)*2
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage
devices support (SATA & PCIE 3.0 x 2 mode)*3
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
USB Ports
ASMedia® USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, teal blue)
AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
4 x USB 3.0 port(s) (4 at back panel, blue)
AMD B350 chipset :
2 x USB 3.0 port(s) (2 at mid-board)
AMD B350 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and
static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Operating System Support
Windows® 10 , 64bit
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)
4 x USB 3.0 (blue)
3 x Audio jack(s)
Internal I/O Ports
1 x Fan RGB header
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices
support (SATA mode & PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1,
Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My
Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial
Presence Detect) memory information, F6 Qfan Control
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
