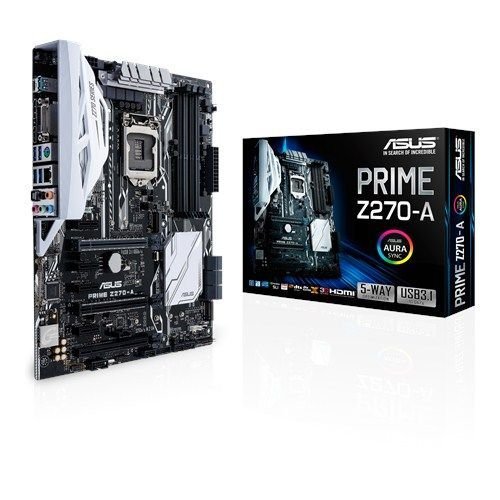

Matična ploča ASUS PRIME Z270-A, Intel Z270, DDR4, zvuk, G-LAN, SATA, M.2, PCI-E 3.0, SLI/CrossFireX, HDMI, DP, DVI-D, USB 3.1-C, ATX, s. 1151 u Links trgovinama

CPU
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core
i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU
types.
Chipset
Intel Z270
Memory
4 x DIMM, Max. 64GB, DDR4
3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133
MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x
1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy
chain up to 3 displays
Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage
devices support (SATA mode & X4 PCIE mode)*1
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices
support (PCIE mode only)*2
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology 15 support
Supports Intel Smart Response Technology*3
Intel Optane Memory Ready *4
LAN
Intel I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard
Audio
Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring
Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for
headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC
Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR
recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Audio Shielding: Ensures precision analog/digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and
immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio
outputs
- EMI protection cover to prevent electrical noise to affect the
amplifier quality
- Power pre-regulator: Reduces power input noise to ensure consistent
performance
Separate layer for left and right track, ensuring both sound deliver
equal quality
USB Ports
ASMedia USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, teal blue, Type-A, Support 3A
power output)
ASMedia USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, , Type-C, Support 3A power
output)
Intel Z270 Chipset :
6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board)
Intel Z270 Chipset :
6 x USB 2.0 port(s) (6 at back panel, )
Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization
tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan
Xpert 4, and Turbo App together, providing better CPU performance,
efficient power saving, precise digital power control, whole system
cooling and even tailor your own app usages.
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and
static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 8 Phase digital power design
ASUS TPU :
- Auto Tuning
- GPU Boost
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG
devices
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- Turbo LAN
- Crystal Sound 3
- EZ XMP ASUS Exclusive Features
- PC Cleaner
File Transfer
- Cloud GO!
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
CPU Installation Tool
- Three-step simplicity and safety
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo APP
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices
support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices
support (PCIE mode only)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) (Chassis intrusion header is
inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x CPU OV
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan header (4-pin)
1 x T_Sensor Connector
1 x AIO PUMP Header
2 x 3D Mount screw port(s)
Accessories
User's manual
ASUS Q-Shield
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (1 in 1)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0,
Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan
Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory
information.
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
