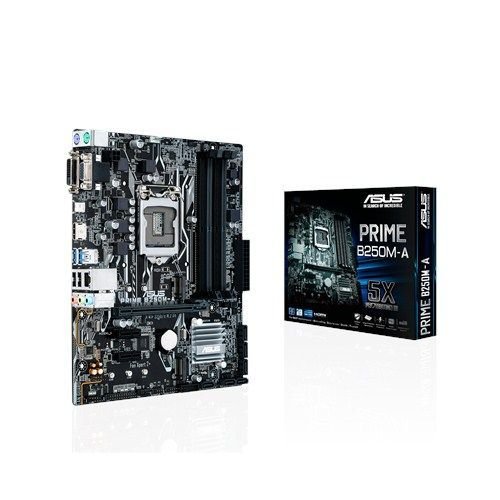

Matična ploča ASUS PRIME B250M-A, Intel B250, DDR4, zvuk, G-LAN, SATA, M.2, PCI-E 3.0, HDMI, D-SUB, DVI-D, USB 3.0, mATX, s. 1151 u Links trgovinama

CPU
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core
i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU
types.
* Refer to www.asus.com for CPU support list
Chipset
Intel B250
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is
only supported by 7th Generation Intel processors. Higher memory
modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory
modules on 6th Generation Intel processors will run at the maximum
transfer rate of DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600
@ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology,
Insider
Supports up to 3 displays simultaneously
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1
Storage
Intel B250 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices
support (SATA mode & X4 PCIE mode)*1
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices
support (x4 PCIE mode)*2
Intel Optane Memory Ready *3
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous
illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and
immersive sound with exceptional clarity and fidelity
USB Ports
Intel® B250 Chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Support 3A
power output)
Intel® B250 Chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 2 at
mid-board)
Intel® B250 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and
static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data
transfer speeds)
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices
support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices
support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x System panel connector
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0,
ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6
Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and
ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor
mATX Form Factor
9.6 inch x 8.1 inch ( 24.4 cm x 20.6 cm )
