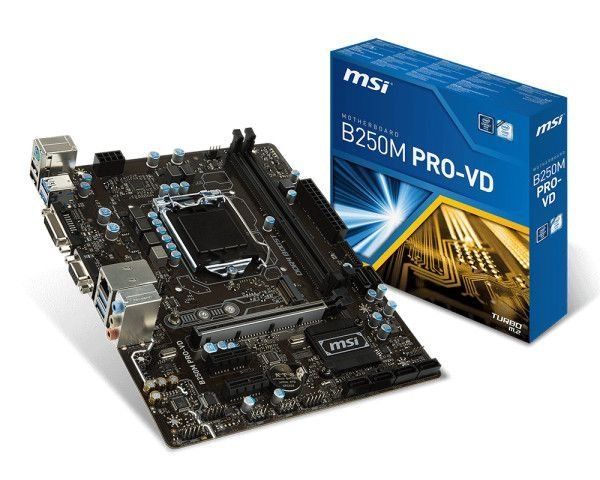

Matična ploča MSI B250M PRO-VD, Intel B250, DDR4, zvuk, G-LAN, SATA, M.2, PCI-E 3.0, DVI-D, D-Sub, USB 3.1, mATX, s. 1151 u Links trgovinama

CPU

• Supports 6th/7th Gen Intel Core™ i3/i5/i7 processors, and Intel
Pentium and Celeron processors for Socket LGA1151
* This function will be supported depend on the CPU.

Chipset

• Intel B250 Chipset

Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- 7th Gen processors support DDR4 2400/ 2133 MHz*
- 6th Gen processors support DDR4 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible
memory.
** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen
processors and 2133 MHz for 6 th Gen processors on XMP mode.

Slots

• 1 x PCIe 3.0 x16 slots
• 2 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz,
2048x1280@60Hz, 1920x1200@60Hz

Storage

• Intel B250 Chipset
• 6 x SATA 6Gb/s ports
• 1 x M.2 slots (Key M)*
- Support up to PCIe 3.0 x4 and SATA 6Gb/
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host card**

* The SATA2 port will be unavailable when an M.2 SATA SSD module has
been installed in the M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase
separately.

USB

• Intel B250 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel,
2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4
ports available through the internal USB connectors)

Audio

• Realtek ALC887 Codec
- 7.1-Channel High Definition Audio

LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1
ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x Chassis Intrusion connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyborard/ mouse combo port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 ports
- 3 x audio jacks

Dimension

• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
• Micro-ATX Form Factor

Mounting

• 6 mounting holes
