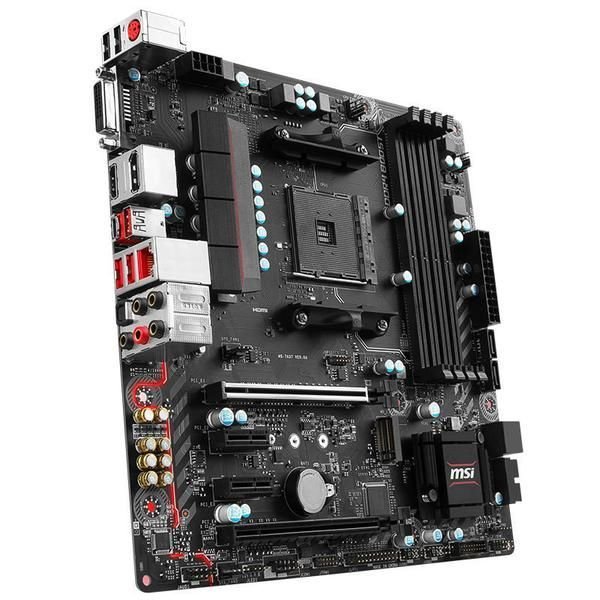

Matična ploča MSI B350M Mortar, AMD B350, DDR4, zvuk, G-LAN, SATA, M.2, PCI-E 3.0, CrossFireX, DVI-D, HDMI, DP, USB 3.1-C, mATX, s. AM4 u Links trgovinama

ChipsetAMD B350
Supports Central Processor UnitAMD Athlon
AMD A series
AMD Ryzen Series
CPU Socket StandardSocket AM4
CPU Maximum Quantity Supports1
Main Board Desktop - Memory
Memory TypeDDR4 SDRAM
Memory Form FactorDIMM 288-pin
Memory Speed2133MHz(PC4-17000)
2400MHz(PC4-19200)
1866MHz(PC4-14900)
3200MHz(PC4-25600)
2933MHz(PC4-23464)
2667MHz(PC4-21300)
Maximum Installable System Memory Storage Capacity64 GB
Memory Slot Total Quantity4
Provides Error Checking Methodnon-ECC
Memory FeaturesTwo DDR Channels
Unbuffered
Main Board Desktop - Storage Controller
Storage Controller TypeSATA III
M.2
Storage Controller Form Factorintegrated
RAID Controller Interface TypeSATA III
Supports RAID LevelLevel 0
Level 1
Level 10
Main Board Desktop - Audio Output
Audio Integratedyes
Device LocationIntegrated
Audio ChipsetRealtek ALC892
Audio Output Mode7.1 Channel Surround
Compliant Audio StandardsHigh Definition Audio
Main Board Desktop - Networking Specifications
LAN Integratedyes
LAN ChipsetRealtek RTL8111H
Data Link Protocol SupportsGigabit Ethernet/Fast Ethernet/Ethernet
Main Board Desktop - Slot Provided
PCI Express 2.0 x16 Slot Quantity1
PCI Express 2.0 x1 Slot Quantity2
PCI Express 3.0 x16 Slot Quantity1
M.2 Slot Quantity1 (Socket 3)
Interface Provided
USB3.11 (USB 3.1 (type C))
SATA III4
PS/21
DisplayPort1
DVI1 (DVI-D)
HDMI1 (HDMI (Type A))
USB3.1 Gen 13 (USB 3.1 (type A))
USB2.02 (4-pin USB (type A))
LAN1 (RJ-45)
Audio Interface1 (3.5-mm minijack x 5)
S/PDIF-out Optical1
Main Board Desktop - Mainboard Features
Power Connectors Type24+8 pin
Mainboard FeaturesFan Speed Control
AMD 2-Way CrossFire Technology
NVMe Support
Miscellaneous
Package TypeRetail
Main Board Desktop - Dimensions&Weight
Form FactorMicro ATX
Height (mm)243 mm
Width (mm)243 mm
